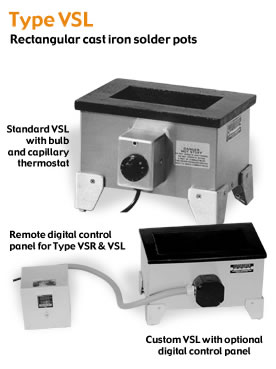

Square/Rectangular Solder Pots - Type VSL
|
Specifications
- Cast iron crucible
- 20 gauge stainless steel shell
- Multiple-circuit heating element for uniform heat
- 2" high density refractory insulation
- Temperature control-(150° to 900° F)
- 6', 3 prong power cord
Options
- Specify 110V or 220V power operation
- Remote digital controls for precise temperature control. Mil. Spec 2000 + 2°F
- Custom sizes. We'll build a solder pot to your size requirements-specify mild steel or stainless steel
|
CLICK HERE FOR CURRENT PRICING
VIEW OR DOWNLOAD OPERATING INSTRUCTIONS
Inside Dimensions
|
| Capacity |
I.D.
(Length x width x depth)
|
Wattage |
|
| Type VSL |
*9 lbs.
12 lbs.
23 lbs.
26 lbs.
26 lbs.
60 lbs.
70 lbs.
80 lbs.
**124 lbs.
**212 lbs. |
5” x 2 1/2” x 2”
4” x 4” x 2”
8” x 4” x 2”
6” x 6” x 2”
18” x 2” x 2”
10” x 4” x 4”
12” x 6” x 3”
12” x 9” x 2”
20” x 4” x 4”
24” x 12” x 2” |
840
840
1080
1080
1080
1200
1560
2040
3360
5520 |
|
|
|
* These models use bi-metallic thermostats. All others use capillary style thermostats.
** These models available in 240 volts only.
